Technical Specifications

Processor

FCBGA1356 socket, 6-8th Gen Intel® Mobile processors

Graphics

Integrated Intel UHD Graphics

Memory

Dual DDR3 SO-DIMM slots 1600MHz, max 16GB RAM

Storage

1×mSATA slot, 1×SATA interface for 2.5-inch SSD/HDD, 1x PCIEx4

Internet

Dual Intel I226V 2.5G RJ45 ports

I/O Interfaces

6×DB9 COM ports; 6×USB3.0 + 2×USB2.0 1 PIn, 1xHDMI1.4, 1×VGA + EDP/ LVDS PIns

Product Categories

Level

Cost effective

Memory Type

DDR3

Product Type

Industrial PC

Product Highlights

Features

CPU Platform
FCBGA1356 socket, compatible with full series 6th/7th/8th Gen Intel® processors, integrated Intel UHD Graphics.
Memory
2×SO-DIMM DDR3 1600MHz slots, maximum capacity 16GB.
Multi-Display Output
External HDMI, onboard VGA pin header; LVDS and eDP (mutually exclusive, switch via jumper). Default LVDS 1920×1080; HDMI supports 1080P triple display, optional single 4K@30Hz.
Storage Interfaces
1×mSATA slot, 1×SATA interface for 2.5-inch SSD/HDD.
Expansion Slots
1×M.2 E Key 2230 for Wi-Fi & Bluetooth; 1×PCIe x4 slot for expansion cards; 1×Mini PCIe slot for 4G modules with SIM support. Reserved TPM header for encryption modules.
Dual Ethernet
Dual RTL8111H gigabit LAN; optional dual Intel I226-V 2.5G Ethernet ports (customized on order).
Abundant USB Ports
5×external USB3.0; 4×internal USB2.0 pin headers + 1×external USB2.0 Type-C.
6 Serial COM Ports
COM1/COM2 configurable RS232/RS485 via jumper and BIOS; COM3–COM6 default RS232. Reserved GPIO control header.
Audio & Function Buttons
Realtek ALC897 HD audio chip with combo MIC/Line-out jack; onboard speaker amplifier header; one-key restore button.
Power Supply & Control
Default DC 12V input; optional wide voltage 11V–27V. Jumper to enable/disable auto power-on. Multiple USB power supply jumpers with 5V/5VSB switch.
Cooling & BIOS
4-pin PWM CPU fan header; AMI BIOS; IT8786E-I I/O control chip.
Environmental Specs
Operating temperature: 0℃~60℃; storage temperature: -20℃~60℃; humidity 0%–95% non-condensing.

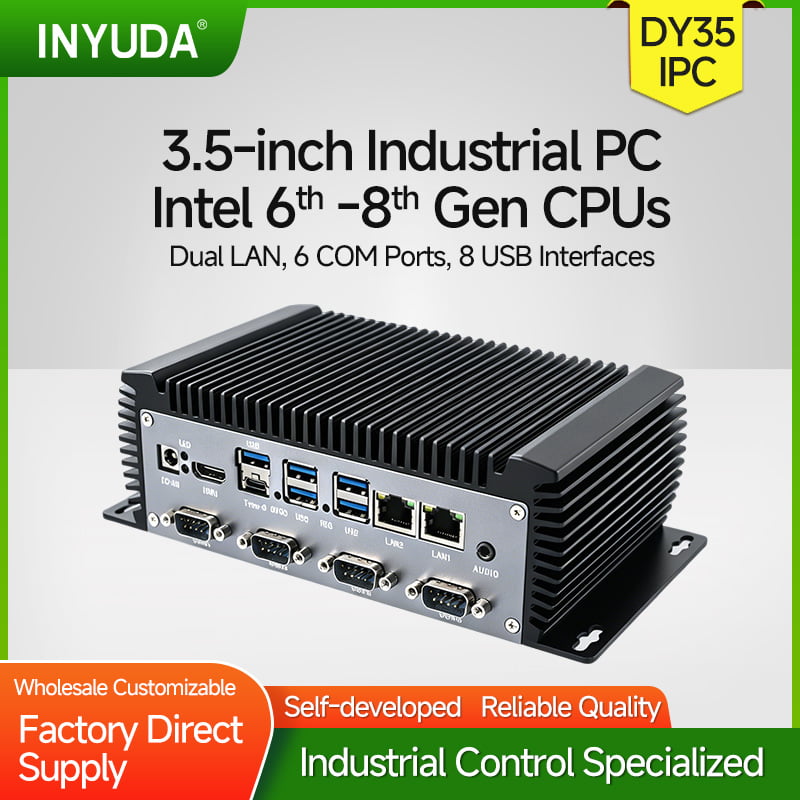

IPC-DY35 678U
