Technical Specifications

Processor

Intel® Celeron™ J6412

Graphics

Intel® UHD Graphics

Memory

2 xSO-DIMM DDR4 slots (2133/2400/2666/3200MHz), max 32GB

Storage

1×M.2 M Key 2280 slot+optional 2.5-inch SATA

Internet

Dual Intel® WGI210AT gigabit Ethernet

I/O Interfaces

6×DB9 COM ports; 4×USB3.0 + 4×USB2.0 1×HDMI1.4, 1x LPT

Product Categories

Level

Cost effective

Memory Type

DDR4

Product Type

Industrial PC

Product Highlights

Features

CPU & Graphics Supports Intel® Celeron™/Pentium™ J/N series processors, integrated Intel® UHD Graphics.
Memory 2 xSO-DIMM DDR4 slots (2133/2400/2666/3200MHz), maximum capacity 32GB.
Multi-display Interfaces 1×HDMI (4096×2160@60Hz), 1×LVDS (default 1920×1080, resolution adjustable via jumpers), 1×eDP (4096×2160@60Hz).
Storage 1×M.2 M Key 2280 slot with auto NVMe/SATA protocol switching; 1×SATA3.0 for 2.5-inch SSD/HDD.
Expansion Slots 1×M.2 E Key 2230 for Wi-Fi & Bluetooth; 1×Mini PCIe for 4G module with SIM card, optional Mini PCIe Wi-Fi.
Network Dual Intel® WGI210AT gigabit Ethernet controllers.
USB Ports 4 external USB3.0 ports; 4 internal USB2.0 pin headers.
Serial & Special I/O 2 external COM ports (switchable RS232/422/485 via jumpers); 4 internal COM pin headers; reserved LPT printer header.
Audio & Function Buttons Realtek ALC897 HD audio chip with combo audio jack; power switch, reset, one-key restore, CMOS clear jumper, speaker amplifier header.
Power Supply DC 12V input, three optional ports: DC OD5.5, 2.54 terminal, 5.08 Phoenix terminal; jumper for auto power-on enable/disable.
Cooling 4-pin PWM CPU fan header + 3-pin system fan header; fan speed adjustable via BIOS smart fan control.
BIOS & Control Chip IT8786E-I I/O chip, AMI BIOS. Supports PXE boot, timed wake-up, Intel® virtualization, secure boot, CMOS reset.
Environmental Parameters Operating temperature: 0℃~60℃; storage temperature: -20℃~75℃; humidity 0%–95% non-condensing.

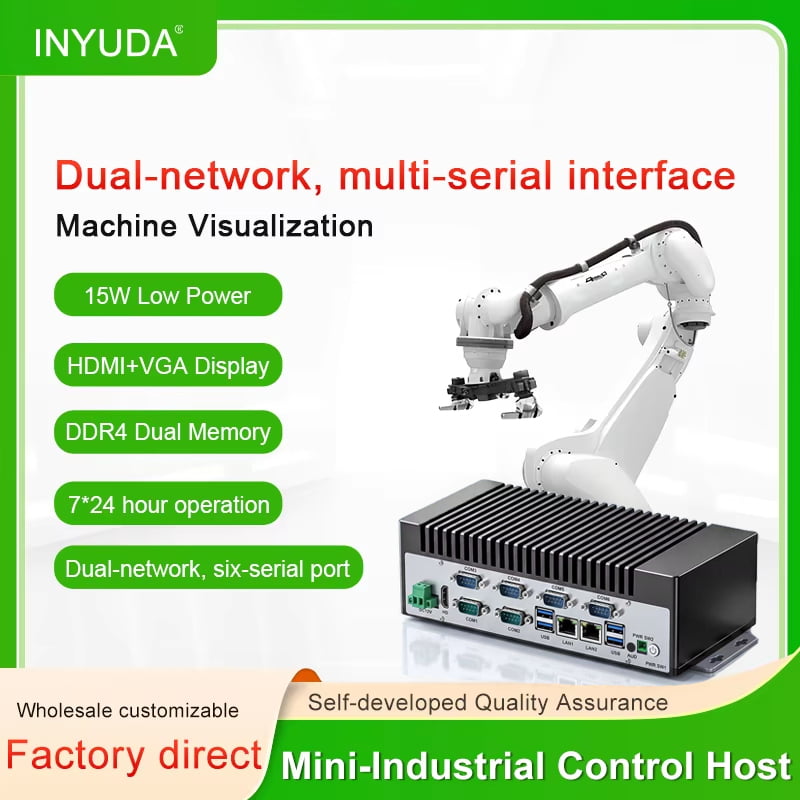

IPC J6412
