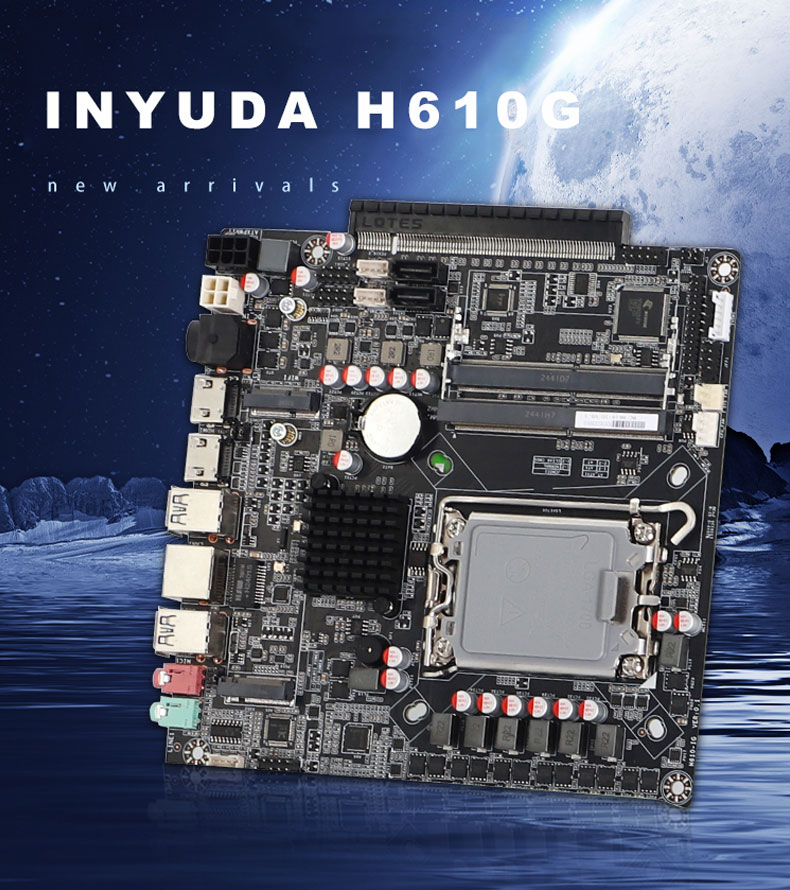

H610-IG ITX Motherboard With PCIEx16 Video Card Slot







This Motherboard Support 12-14th Generation LGA1700 Processor;

Support 2-12G Dicreted Video Card

Brand Name: INYUDA

Size: 17*17CM

Support OS: Windows/ Linux

MB Model.:

BC-H610-IG V0.1

Processor

Support Intel® Core/ Celeron/ Pentium LGA1700 Desktop processor

Graphics

l Intel® HD Graphics Integrated Graphics+Discreted Video Card

Display Output

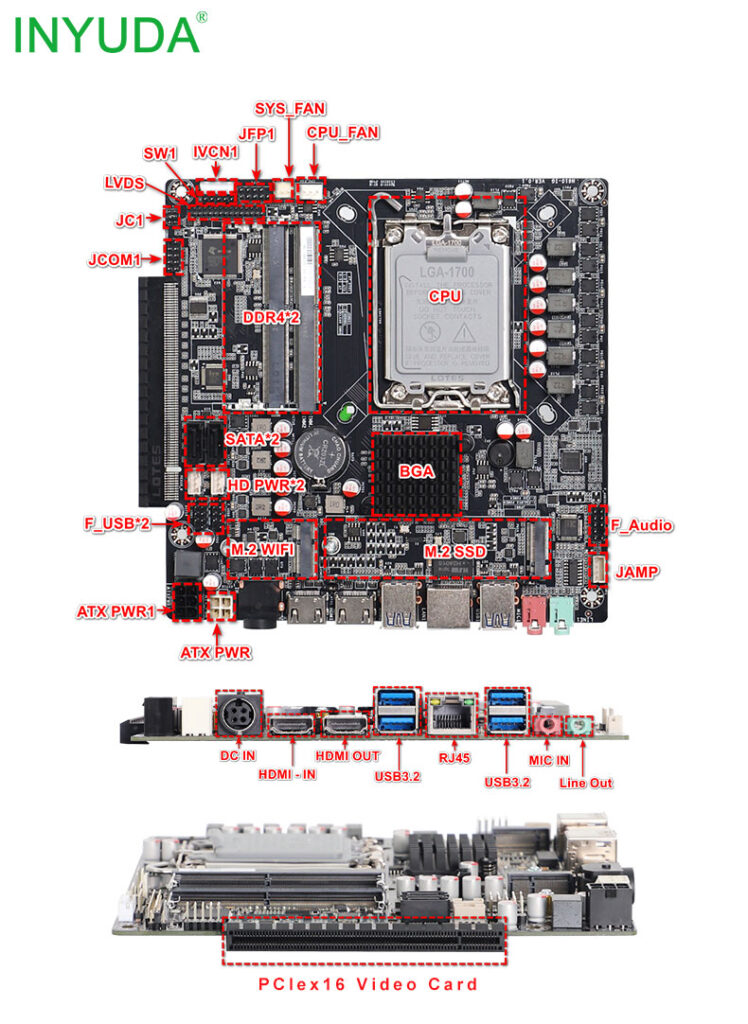

IO Port:  HDMI out  or HDMI IN+Video Card

[HDMI OUT Max support  3840×2160@60Hz   LVDS Max Support 1920*1080]

RAM

2 *SO-DIMM Support DDR4 2133/2400/2666/3200MHz MAX:64G

Storage

1*M.2 M Key 2280 solt Support NVMe/SATA Protocol(Auto-switch)

2*SATA Support 2.5寸SSD/Hard Disk

Extension

1*M.2 E Key 2230 solt Support WIFI+BT

Audio

1*Realtek ACL897 High Definition Audio Driver; 1*5W AMP;

Internet

1* Realtek RTL8111H 1000M Gigabit LAN card

USB

4*USB3.2

4*USB2.0; and 1*UTC75 232COM

I/O Chip-set

ITE8613E

BIOS

AMI BIOS

Power Input

DC_IN:12V/19V  (4pin connectors )

 Fan

[built-in: 1*SYS_FAN1x3Pin 1*CPU_FAN 1x4Pin]

Environment

Working Temperature:0~60℃

Storage Temperature:-20℃~75℃

Humidity: 0%~95% Relative humidity, non-condensing
