Features:
Support Intel® Core™ I3/I5/I7/I9 10-11th generation desktop processor
Support Dual SO-DIMM DDR4 Memory, 2400/2666/3200MHz,MAX support 64G
Support M.2 SSD+2.5inch SATA Socket hard disk
Support customized 2*Realtek RLT8111H Ethernet ports
Size: 170*170mm
Brand: INYUDA

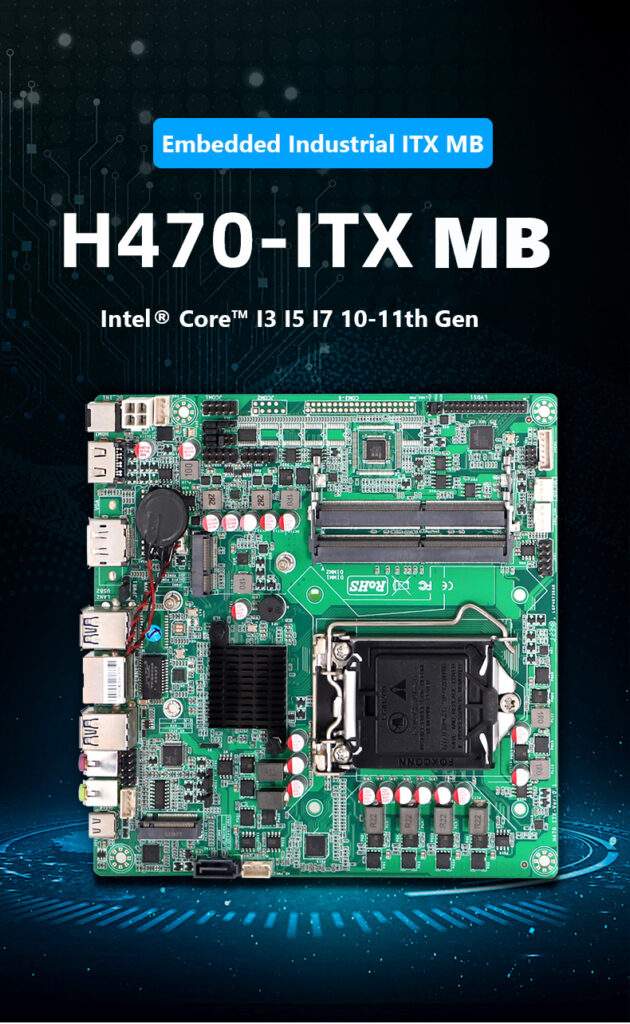

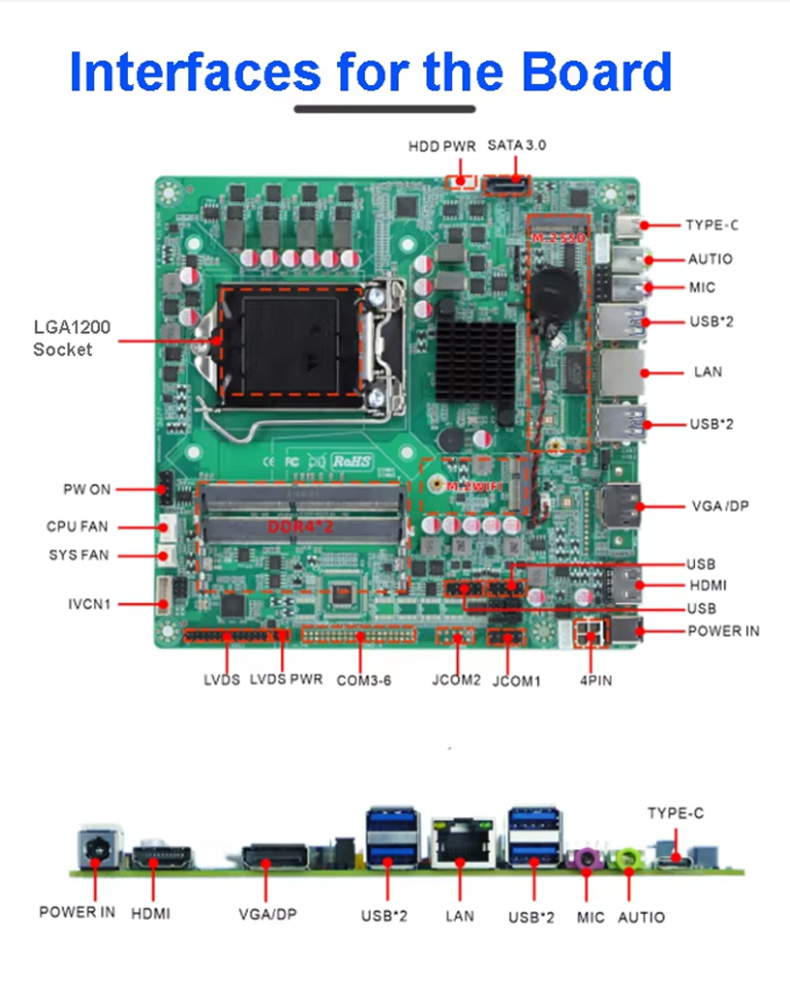

MB Model.: | H470 ITX MB V1.0 |
Processor | Support 10-11th Intel® Core™ I3/ I5/ i7 desktop processor |
Graphics | Intel® UHD Graphics Integrated Graphics |
Display Output | IO Port: HDMI+DP HDMI Max support 3840×2160@60Hz DP Max Support 3840×2160@60Hz |
RAM | 2 *SO-DIMM Support DDR4 2400/2666MHz MAX：64G |
Storage | 1*2.5inch SATA Support SSD/ HDD 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch） |
Extension | 1*M.2 E Key 2230 solt Support max 6*COM ports(Default One COM port) |
Audio | 1*Realtek ACL897 High Definition Audio Driver |
Internet | 1*Realtek RLT8111H Gigabit LAN card [optional dual LAN] |
USB | Front 2*USB2.0, Rear 4*USB3.2 |
I/O Chip-set | ITE8613E |
BIOS | AMI BIOS |
Power Input | DC_JACK 12V/19V, 4Pin Power Socket |
Fan | With CPU FAN [Built-in：1*SYS_FAN1x3Pin 1*CPU_FAN 1x4Pin] |
Environment | Working Temperature：0~60℃ Storage Temperature：-20℃~75℃ Humidity: 0%~95% Relative humidity, non-condensing |
