Mini ITX Motherboards

Below are our motherboard for ITX and mini ITX, the motherboard chipset is Intel® Core™, I3/i5/i7/i9, or  Intel® celeron®, Intel® Pentium®, let us know what processor you need, and which ram and storage you want for your customized computers.

Size: 17*17CM

Size: 17*17CM

Size: 11*12.7CM

Size: 17*17CM

Size: 17*17CM

Size: 17*17CM

Size: 17*17CM

Size: 30.5*24.4CM

Size: 17*17CM

Size: 17*17CM

Size: 17*17CM

Size: 25.4*24.4CM

Mini ITX Motherboard inner parts in details

Inyuda R&D X86 ITX motherboard from 2017, from the beginning that we set up. The ITX motherboard uses industrial grade materials and can apply to machines at 24/7. The PCB board need structured out and every position should be planned for each Electronic Components. The factory use automatic assembly line to prevent any errors in the process.

  • Automatic work line for motherboard soldering and pin.
  • Manual examination for the positions of the components.
  • 100% inspection for IQC, IPQC and OQC.

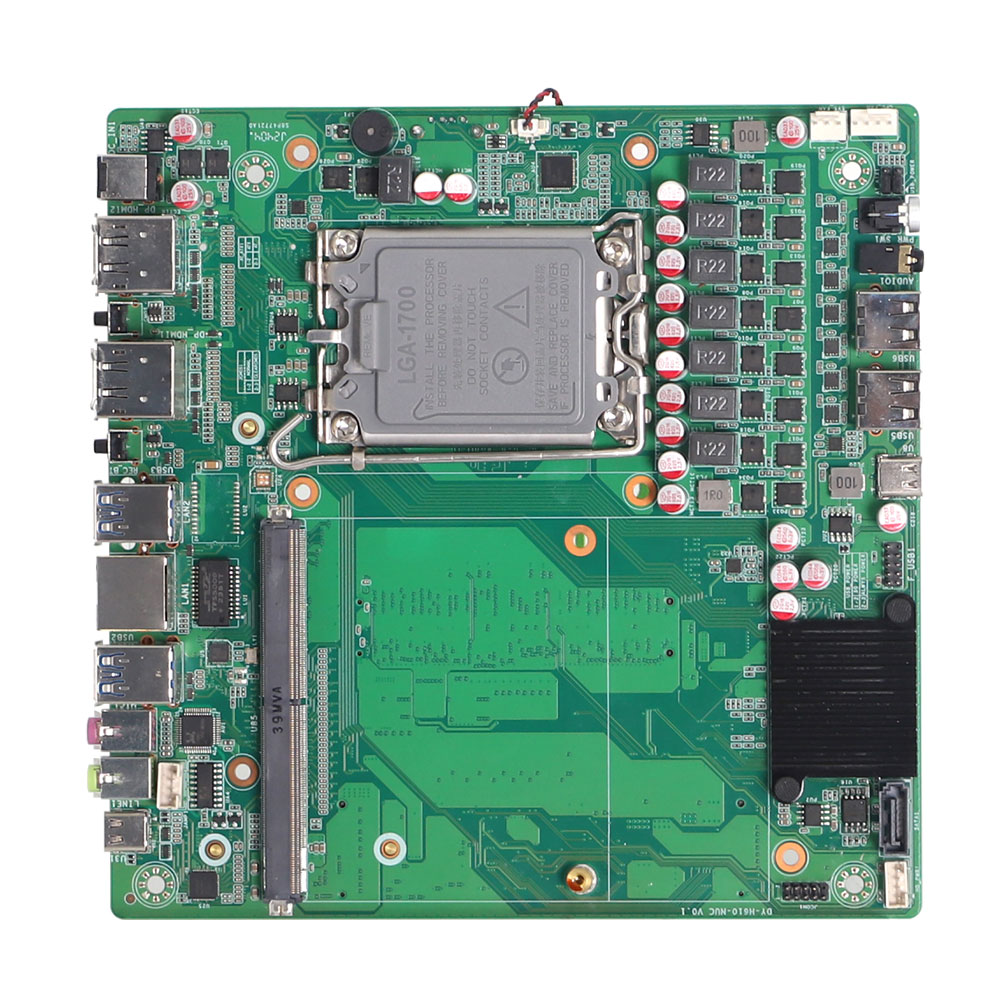

An ITX computer motherboard consist of serveral parts: Ports, BGA, CPU, Memory, Storage, WiFi module, OPS sockets, Bios Battery and other components.

  • CPU: Different generation processor is different socket and motherboard for it.
  • Memory: There are DDR3/ DDR4 memory available for different motherboard.
  • Storage: SSD/ HDD hard disk available, for higher end, MB support M.2 NVMe SSD as well.
  • WiFi: Support 2.4G/ 5G/ Bluetooth WiFi Module.
  • I/O ports: There are 4*USB port(more than 2*USB3.0), HDMI® port, VGA/COM port, Lan port, Type-C, Audio & Mic jack, DC Power.

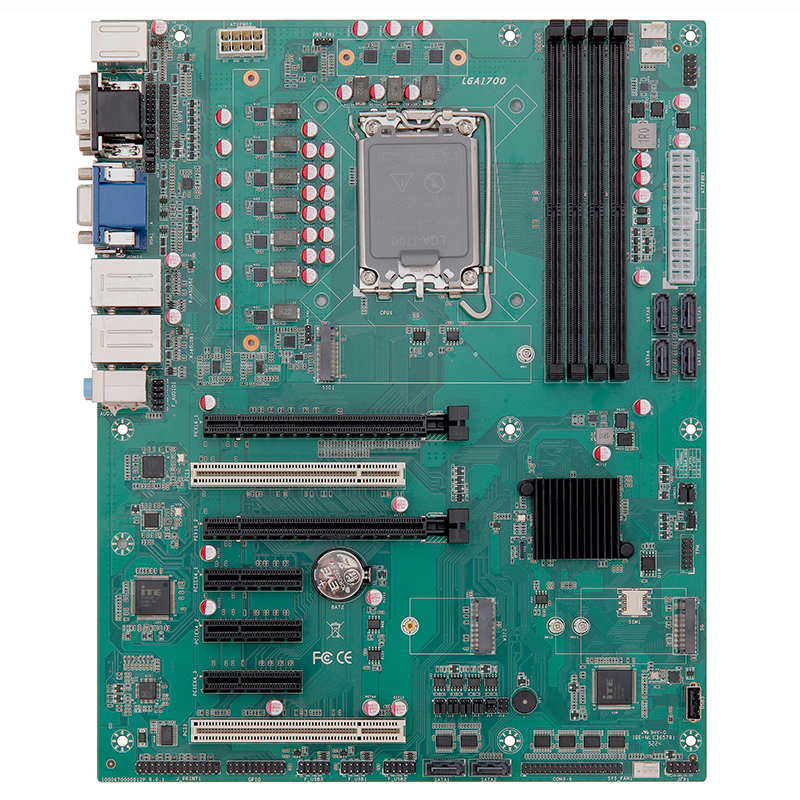

INYUDA ATX Motherboard inner Parts

INYUDA ATX motherboard is Industrial Grade motherboard, which has dual LAN ports and use more in Industry.

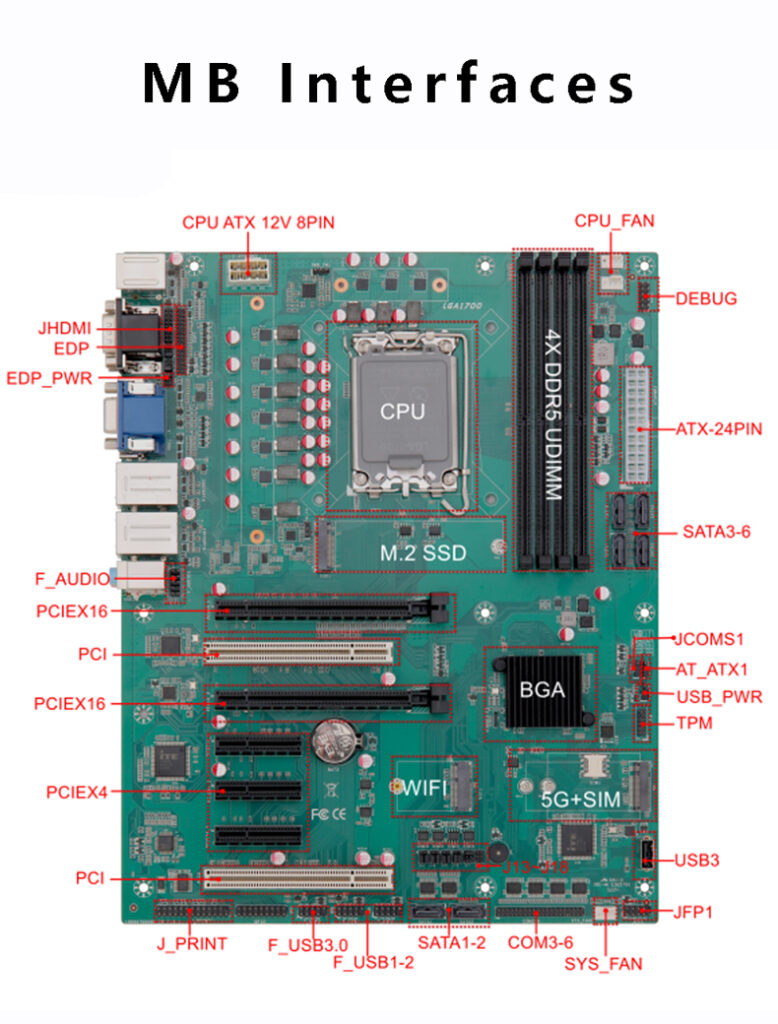

An ATX computer motherboard consist of serveral parts: Ports, BGA, CPU, Memory, Storage, WiFi module,  Bios Battery and other components.

  • CPU: Different generation processor is different socket and motherboard for it.
  • Memory: 4*DDR5 memory max support 320GB RAM.
  • Video Card: 2*PCIEx16 Slot; 2*PCI; 3*PCIEx4
  • Storage: M.2 SSD + 6*SATA3.0  HDD hard  disk.
  • WiFi: Support 2.4G/ 5G/ Bluetooth WiFi Module.
  • 5G SIM Card Slot, for extension usage

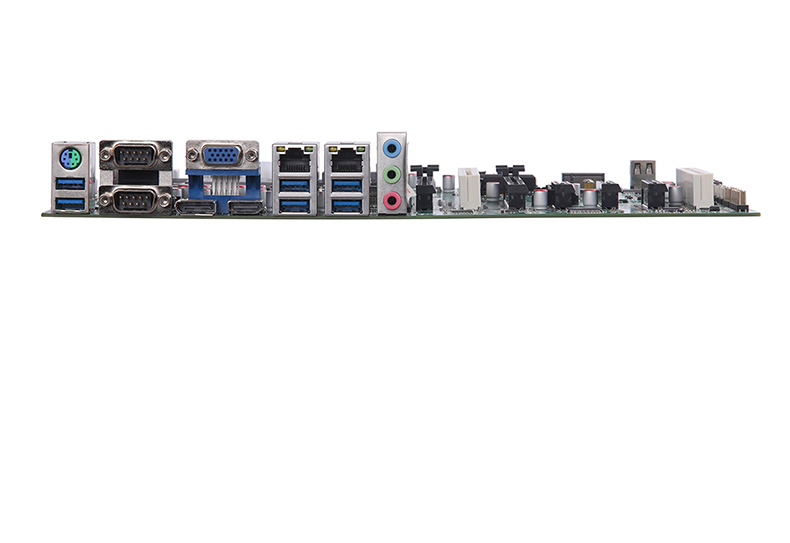

  • I/O ports: There are 6*USB port(more than 4*USB3.0), HDMI® port, DP port, 2*Lan port, 6*Com ports at most, Type-C, Audio & Mic jack, PS2…
  • Power: CPU ATX 12V 8PIN Power Socket, ATX 24PIN Power.
  • FAN: 2*CPU FAN, SYS FAN

ATX Motherboard Apply in Server Cases

There are different sizes of Computers Chassis for different motherboard; ITX computer motherboard with discreted video card, ATX computer motherboard inside the tower cases;

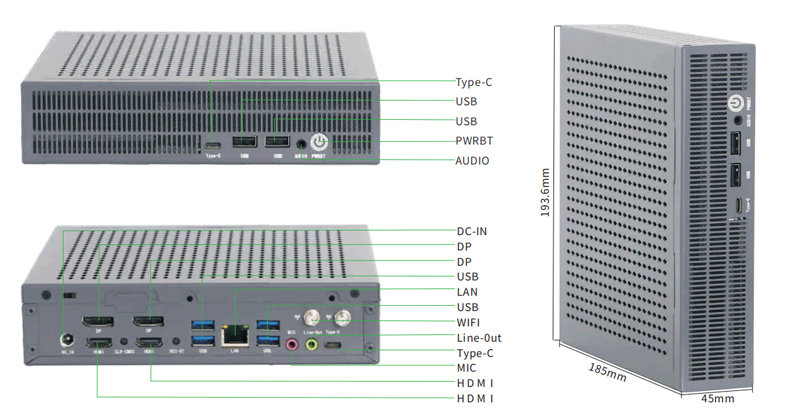

ITX Motherboard for mini PC

Most of ITX  mini computer motherboard is 17*17CM, so the size of the computer case is around 20*20CM. This cases is for H610M ITX motherboard with MXM video card, it is the currently INYUDA’s smallest mini pc with video card, which can apply into ROBOT, or advertising machines.

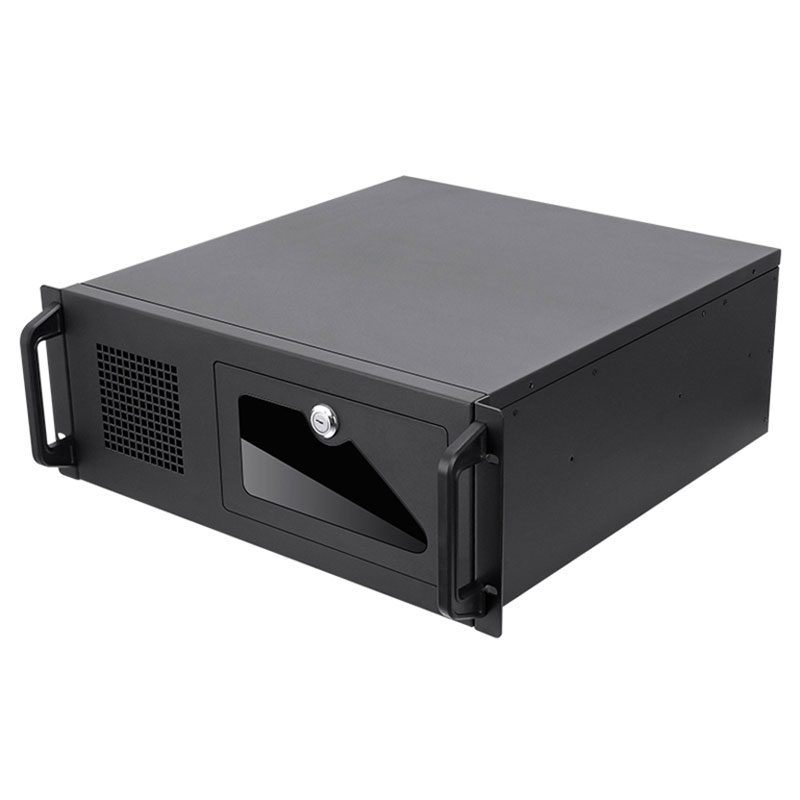

ATX Motherboard for Tower PC

ATX motherboard is much bigger than ITX motherboard, so the cases need to be tower cases. INYUDA’s H670 ATX motherboard use this 4U cases to apply in Industrial area.
