This Motherboard Support 12-14th Generation LGA1700 Processor;
Support 2-12G MXM Video Card
Brand Name: INYUDA
Size: 17*17CM
Support OS: Windows/ Linux
MB Model.: | H610M-ITX V0.1 |
Processor | Support Intel® LGA 1700 slots 12-14th generation processor TDP：95W |
Graphics | Intel® UHD Graphics Integrated Graphics+MXM Video Card |

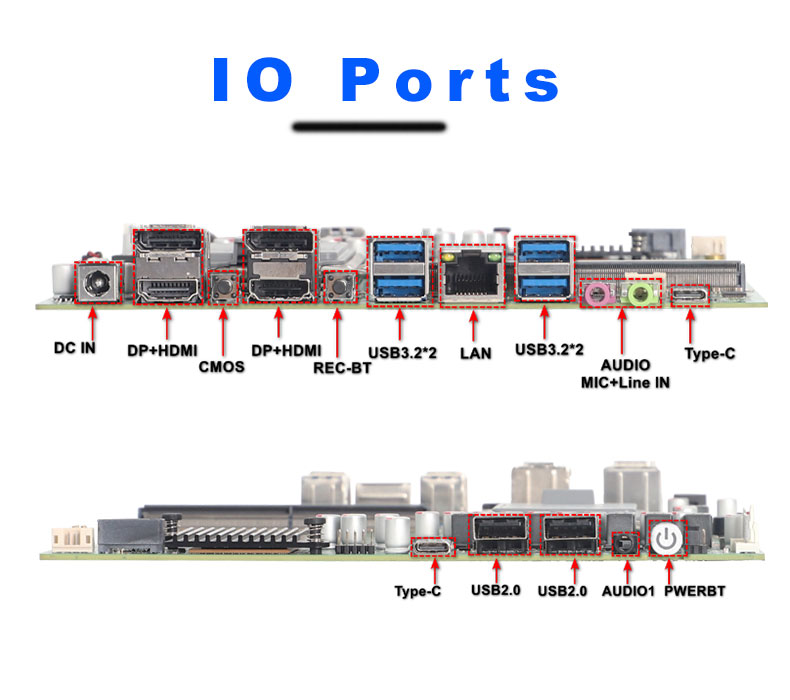

Display Output | IO Port: 2*HDMI+2*DP+Type-C_DP Based on the display function of the integrated graphics card processor, the shared display memory technology is adopted 2*HDMI interface with up to 3840×2160@60hz resolution (HDMI version 1.4) 2*DP 1.2 interface, up to 3840×2160@60hz resolution |
RAM | 2 *SO-DIMM Support DDR4 2400/2666/3200MHz, dual channel memory MAX：64G |
Storage | 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Jumper Switch） 1*SATA 3.0 Interfaces |
Extension | 1*M.2 E Key 2230 solt |
Audio | 1*Realtek ACL897 High Definition Audio Driver sound card chip |
Internet | 1*Realtek RLT8111H Gigabit LAN card [optional dual LAN] Support network arousal Support for UEFI no-disk boot |
USB | 4*USB3.2 [Gen2 x1 10Gbps], 2*Type-C port 4*USB2.0 Pins on board |
I/O Chip-set | ITE8613E |
BIOS | AMI BIOS |

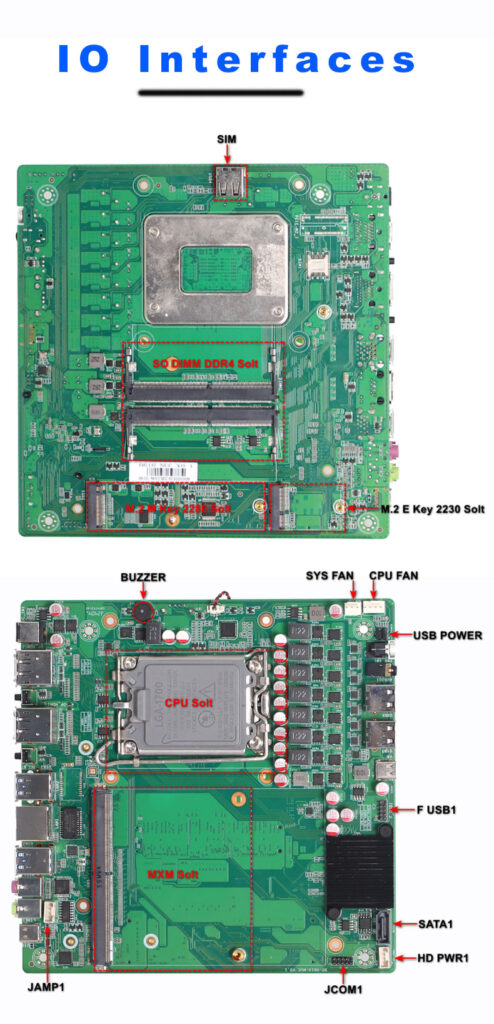

Inside board socket
| 1*groups of SYS_ FAN pins, 1 group of CPU fan pins (support auto adjustment) 1*set of CLR_ CMOS button, 1*Debug pin insert, 1*BIOS_SPI burning pin |
Hardware monitoring | Intelligent fan speed control (the main board has been supported, the intelligent fan speed control also needs fan support) |
Operating system | Support for UEFI Windows 10 64bit, UEFI Windows 11 64bit Support for Ubuntu 64bit |
