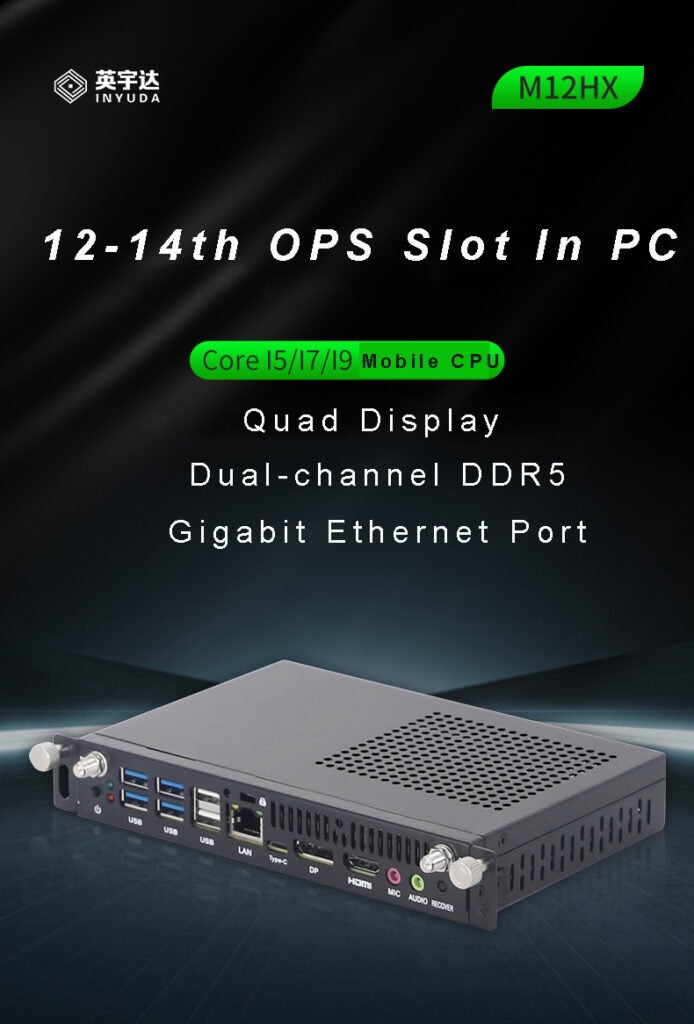

Features:
Support Intel® Core™ 12-14th generation HX Series processor
CPU Chipset: HM670/HM770
Support Dual LPDDR5 Memory,5600/3200MHz,MAXsupport 64G
Support customized 2*Realtek RLT8111H Ethernet ports
Size: Euro size: 119*180*30MM; Asia Size: 195*180*30/42mm
Brand: INYUDA
MB Model.: | M12HX-OPS V0.1 |
Processor | Support 12th/13th/14th HX series Intel® Core™ I5/I7/I9 Mobile processor |
Graphics | Intel®UHD Graphics Integrated Graphics |
CPU Bridge | HM670/ HM770 |
Display Output | IO Port: HDMI+DP+Type-C_DP ;OPS Port:HDMI+DP HDMI Max support 4096×2304@60Hz DP Max Support 7680×4320@60Hz |
RAM | 2 *SO-DIMM DDR5 4800/5200/6000/6400MHz MAX:128G |
Storage | 1*2.5inch SATA Support SSD/ HDD 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol(Auto Switch) |
Extension | 1*M.2 E Key 2230 solt |
Audio | 1*Realtek ACL897 High Definition Audio Driver |
Internet | 1*Realtek RLT8111H Gigabit LAN card [optional dual LAN] 1*OPS 80Pin Realtek RLT8111H LAN card , Need Subcard match this function |
USB | 2*USB2.0 , 4*USB3.2 |
I/O Chip-set | ITE8613E |
BIOS | AMI BIOS |
Power Input | DC_JACK 12~20V |
Fan | With CPU FAN [Built-in:1*SYS_FAN1x3Pin 1*CPU_FAN 1x4Pin] |
Environment | Working Temperature:0~60; Storage Temperature:-20℃~75℃ Humidity: 0%~95% Relative humidity, non-condensing |
Customers visit the website first, and then send us an inquiry on the website by filling in the form. Our salesman will quote the price to the purchaser after getting the purchase information. After the two sides confirm all the transaction details, we will send samples to the users. After the user is satisfied with the sample, he will give us the final order.
After the factory has finished producing the goods, it will be sent to the customer’s country by sea or by train.
Professional OPS mini computer manufacturer from China, we can provide OEM & ODM services.
