Customize your OPS Slot PC to whatever you want.



Own them at a factory direct  price.



Get an instant quote and FREE OPS Slot Subecard samples today!

The production capacity of our factory is enough to support the cooperation of any super merchants.

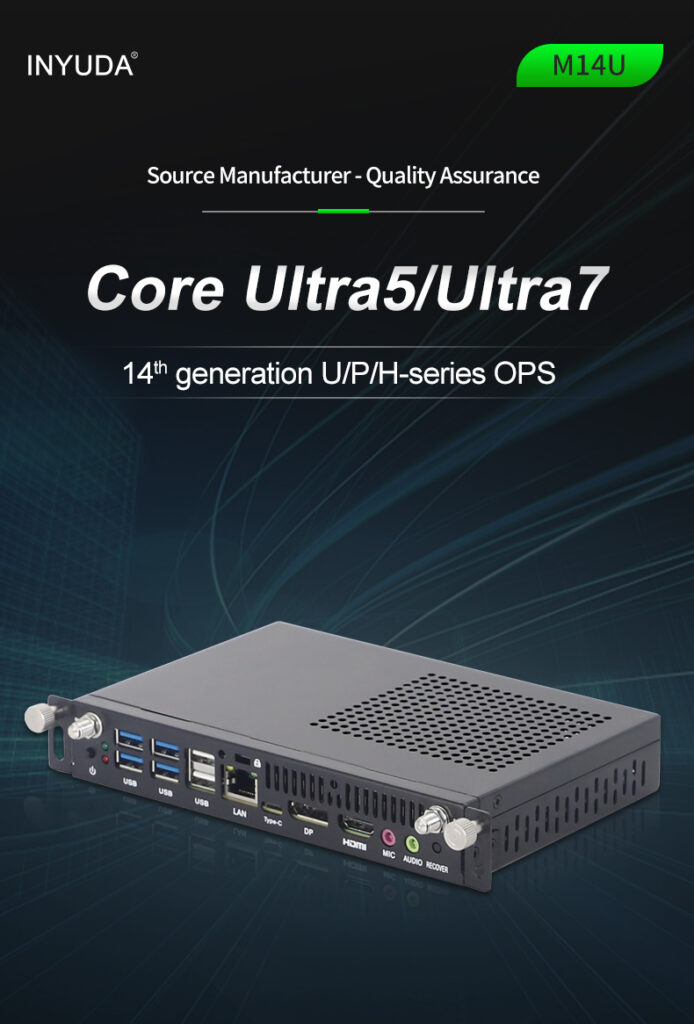

INYUDA M14U/AM590 Ultra OPS Slot PC



Features:
Support Intel® Core™  Ultra5/Ultra7/Ultra9 14th generation processor

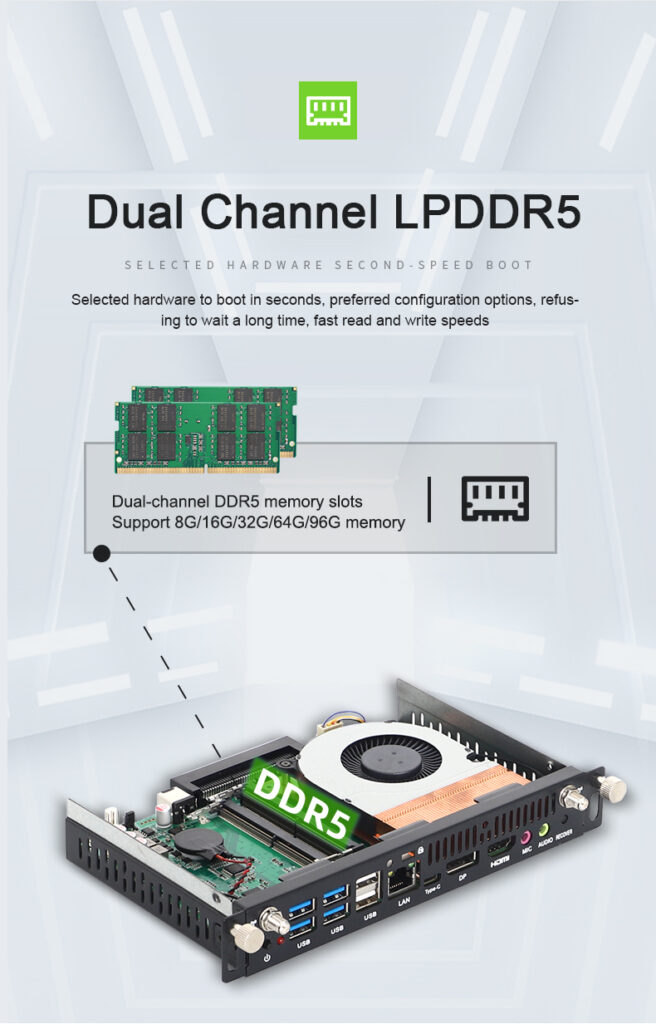

Support Dual LPDDR5 Memory,5600/3200MHz,MAXsupport 64G

Support customized 2*Realtek RLT8111H Ethernet ports

Size: Euro size: 119*180*30MM; Asia Size: 195*180*30/42mm

Brand: INYUDA

MB Model.:

M14U-OPS V2.0

Processor

Support 14th Intel® Core™ Ultra 5/Ultra7/Ultra9 Mobile processor

Graphics

Intel® Arc™ Graphics Integrated Graphics

Display Output

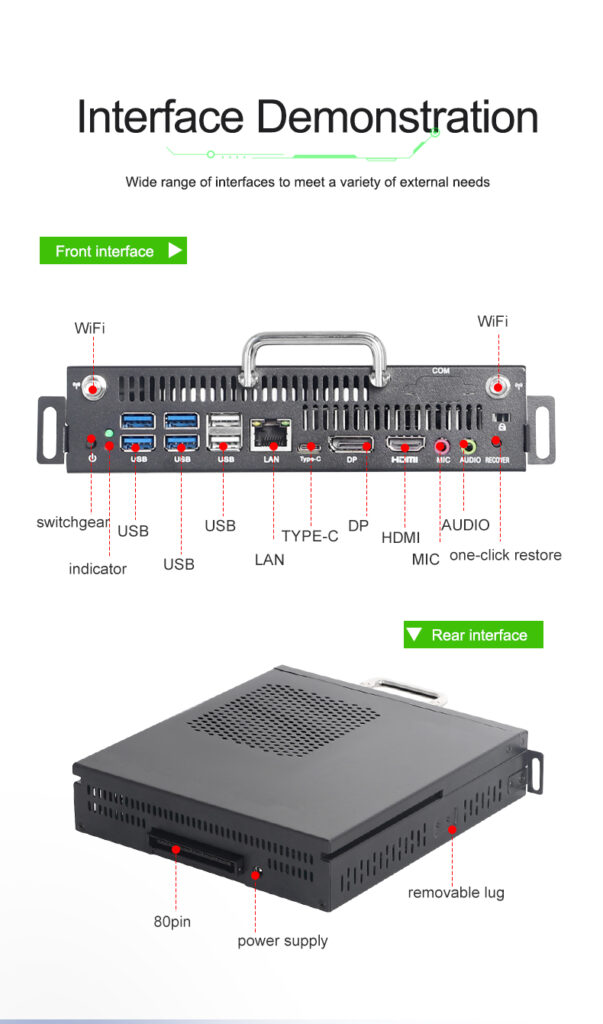

IO Port:  HDMI+DP+Type-C_DP

OPS Port:HDMI+DP

HDMI Max support  4096×2304@60Hz

DP Max Support 7680×4320@60Hz

RAM

2 *SO-DIMM Support DDR5 4800/5600MHz MAX:128G

Storage

1*2.5inch SATA Support SSD/ HDD

1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol(Auto Switch)

Extension

1*M.2 E Key 2230 solt

Audio

1*Realtek ACL897 High Definition Audio Driver

Internet

1*Realtek RLT8111H Gigabit LAN card [optional dual LAN]

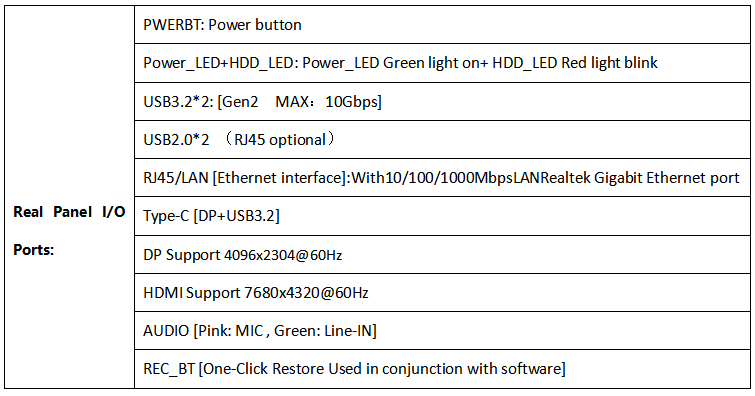

USB

2*USB2.0

4*USB3.2

I/O Chip-set

ITE8613E

BIOS

AMI BIOS

Power Input

DC_JACK  12V/19V

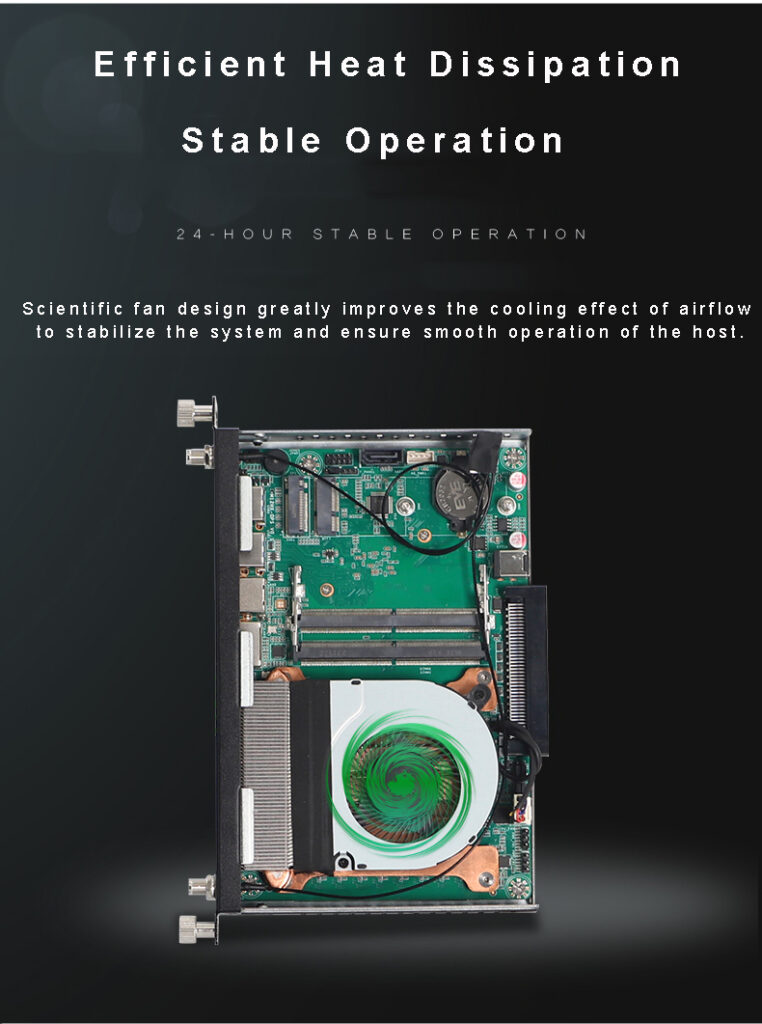

Fan

With CPU FAN [Built-in:1*SYS_FAN1x3Pin  1*CPU_FAN 1x4Pin]

Environment

Working Temperature:0~60℃ Storage Temperature:-20℃~75℃

Humidity: 0%~95% Relative humidity, non-condensing



Purchase Guidline

Customers visit the website first, and then send us an inquiry on the website by filling in the form. Our salesman will quote the price to the purchaser after getting the purchase information. After the two sides confirm all the transaction details, we will send samples to the users. After the user is satisfied with the sample, he will give us the final order.

After the factory has finished producing the goods, it will be sent to the customer’s country by sea or by train.

Get A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@inyuda.com”

Contact us to get Computers Information In China

Note: Your email information will be kept strictly confidential.
