Features:
Support Intel® Core™ I3 I5 I7 6-14th generation desktop processor
Support Dual LPDDR4 Memory, 2400/2666/3200MHz, MAXsupport 64G
Support customized 2*RS232 COM ports
Size: 198*196*45mm
Brand: INYUDA
|
MB Model.: |
H110 ITX, H470 ITX， H610 ITX, 17*17CM |
|
Processor |
Support 6-14th Intel® Core™ I3/ I5/ I7 Desktop processor |
|
Graphics |
Intel® HD/UHD Integrated Graphics |
|
Display Output |
IO Port: HDMI+DP+Type-C_DP OPS Port：HDMI+DP HDMI Max support 4096×2304@60Hz DP Max Support 7680×4320@60Hz |
|
RAM |
2 *SO-DIMM Support DDR4 2666/3200MHz MAX：128G |
|
Storage |
1*2.5inch SATA Support SSD/ HDD 1*M.2 M Key 2280 solt Support NVMe/ SATA Protocol（Auto Switch） |
|
Extension |
1*M.2 E Key 2230 solt |
|
Audio |
1*Realtek ACL897 High Definition Audio Driver |
|
Internet |
1*Realtek RLT8111H Gigabit LAN card [optional dual LAN] |
|
USB |
2*USB2.0, 4*USB3.2 |
|
I/O Chip-set |
ITE8613E |
|
BIOS |
AMI BIOS |
|
Power Input |
DC_JACK 12V/19V |
|
Fan |
With CPU FAN [Built-in：1*SYS_FAN1x3Pin 1*CPU_FAN 1x4Pin] |
|
Environment |
Working Temperature：0~60℃ Storage Temperature：-20℃~75℃ Humidity: 0%~95% Relative humidity, non-condensing |
|

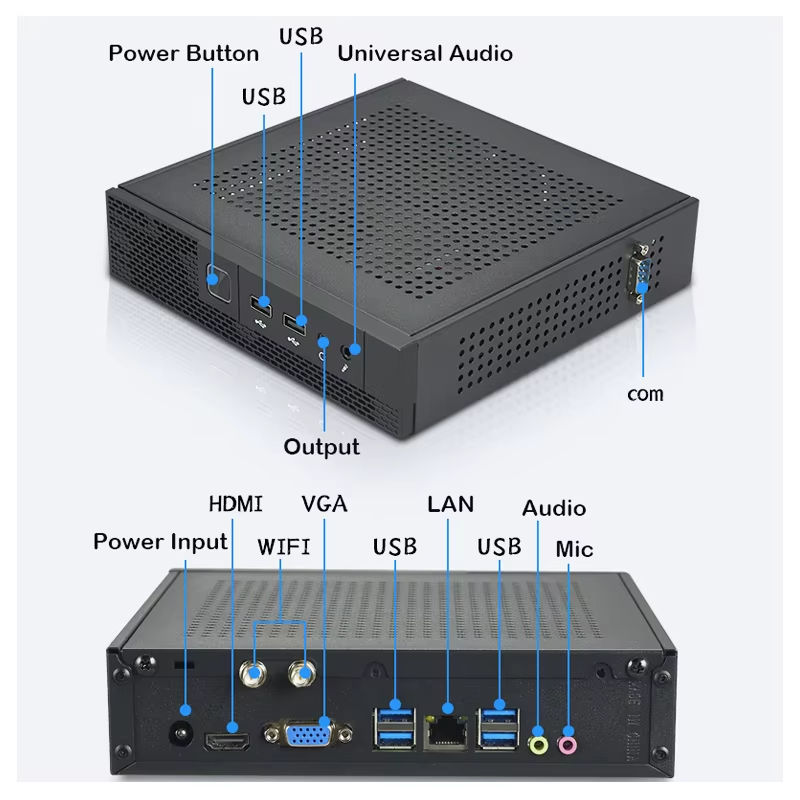

IO Interfaces |
DC power [Support 12-19V DC power input] |
|
|
HDMI interface: Max resolution Support3840x2160@60hz |
|
|
VGA interface: Up to 1920×1080@60Hz resolution /DP 1.2 Max Support 3840×2160@60hz resolution |
|
|
USB3.2 *3[GEN2 Max: 10Gbps]; USB2.0*1 |
|
|
RJ45/LAN [Ethernet interface] With10/100/1000MbpsLANRealtek Gigabit Ethernet port |
|
|
MIC Interface (Pink), Audio Interface(Green) |
|
|
Type-C interface(DP+USB 3.2 ), Top support theory 5Gbps speed transmission, downward compatibility with USB 2.0 and USB 1.1 standards, for connecting USB TYPE C devices. |
|
|
Customers visit the website first, and then send us an inquiry on the website by filling in the form. Our salesman will quote the price to the purchaser after getting the purchase information. After the two sides confirm all the transaction details, we will send samples to the users. After the user is satisfied with the sample, he will give us the final order.
After the factory has finished producing the goods, it will be sent to the customer’s country by sea or by train.
